J系列-2501-LLL

發(fā)布日期：2024-01-12 瀏覽次數(shù)：1399

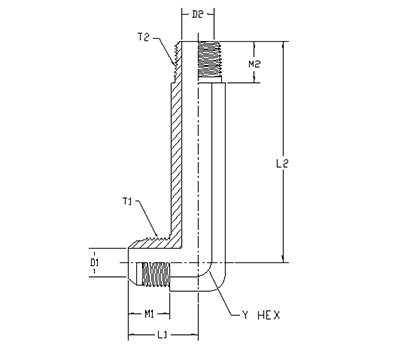

ITEM	P/N	Y HEX	T1	T2	T1	T2	M1	M2	D1	D2
1	2501-LLL-02-02-FG	0.438	5/16-24UNF	1/8-27NPTF			0.77	0.72	0.062	0.188
2	2501-LLL-03-02-FG	0.438	3/8-24UNF	1/8-27NPTF			0.83	0.72	0.125	0.188
3	2501-LLL-04-02-FG	0.438	7/16-20UNF	1/8-27NPTF			0.89	0.78	0.172	0.188
4	2501-LLL-04-04-FG	0.562	7/16-20UNF	1/4-18NPTF			1.05	1.09	0.172	0.281
5	2501-LLL-04-06-FG	0.75	7/16-20UNF	3/8-18NPTF			1.12	1.22	0.172	0.406
6	2501-LLL-04-08-FG	0.875	7/16-20UNF	1/2-14NPTF			1.21	1.47	0.172	0.531
7	2501-LLL-05-02-FG	0.562	1/2-20UNF	1/8-27NPTF			0.95	0.78	0.234	0.188
8	2501-LLL-05-04-FG	0.562	1/2-20UNF	1/4-18NPTF			1.05	1.09	0.234	0.281
9	2501-LLL-05-06-FG	0.75	1/2-20UNF	3/8-18NPTF			1.12	1.22	0.234	0.406
10	2501-LLL-05-08-FG	0.875	1/2-20UNF	1/2-14NPTF			1.21	1.47	0.234	0.531
11	2501-LLL-06-02-FG	0.562	9/16-18UNF	1/8-27NPTF			1.06	0.9	0.297	0.188
12	2501-LLL-06-04-FG	0.562	9/16-18UNF	1/4-18NPTF			1.06	1.09	0.297	0.281
13	2501-LLL-06-06-FG	0.75	9/16-18UNF	3/8-18NPTF			1.14	1.22	0.297	0.406
14	2501-LLL-06-08-FG	0.875	9/16-18UNF	1/2-14NPTF			1.22	1.47	0.297	0.531
15	2501-LLL-06-12-FG	1.062	9/16-18UNF	3/4-14NPTF			1.31	1.59	0.297	0.719
16	2501-LLL-08-02-FG	0.75	3/4-16UNF	1/8-27NPTF			1.25	1.03	0.391	0.188
17	2501-LLL-08-04-FG	0.75	3/4-16UNF	1/4-18NPTF			1.25	1.22	0.391	0.281
18	2501-LLL-08-06-FG	0.75	3/4-16UNF	3/8-18NPTF			1.25	1.22	0.391	0.406
19	2501-LLL-08-08-FG	0.875	3/4-16UNF	1/2-14NPTF			1.33	1.47	0.391	0.531
20	2501-LLL-08-12-FG	1.062	3/4-16UNF	3/4-14NPTF			1.42	1.59	0.391	0.719
21	2501-LLL-08-16-FG	1.312	3/4-16UNF	1-11-1/2NPTF			1.52	1.97	0.391	0.938
22	2501-LLL-10-06-FG	0.875	7/8-14UN	3/8-18NPTF			1.45	1.28	0.484	0.406
23	2501-LLL-10-08-FG	0.875	7/8-14UN	1/2-14NPTF			1.45	1.47	0.484	0.531
24	2501-LLL-10-12-FG	1.062	7/8-14UN	3/4-14NPTF			1.54	1.59	0.484	0.719
25	2501-LLL-10-16-FG	1.312	7/8-14UN	1-11-1/2NPTF			1.64	1.97	0.484	0.938
26	2501-LLL-12-06-FG	1.062	1-1/16-12UN	3/8-18NPTF			1.66	1.4	0.609	0.406
27	2501-LLL-12-08-FG	1.062	1-1/16-12UN	1/2-14NPTF			1.66	1.59	0.609	0.531
28	2501-LLL-12-12-FG	1.062	1-1/16-12UN	3/4-14NPTF			1.66	1.59	0.609	0.719
29	2501-LLL-12-16-FG	1.312	1-1/16-12UN	1-11-1/2 NPTF			1.76	1.97	0.609	0.938
30	2501-LLL-14-12-FG	1.312	1-3/16-12UN	3/4-14NPTF			1.8	1.69	0.719	0.719
31	2501-LLL-16-08-FG	1.312	1-5/16-12UN	1/2-14NPTF			1.81	1.78	0.844	0.531
32	2501-LLL-16-12-FG	1.312	1-5/16-12UN	3/4-14NPTF			1.81	1.78	0.844	0.719
33	2501-LLL-16-16-FG	1.312	1-5/16-12UN	1-11-1/2 NPTF			1.81	1.97	0.844	0.938
34	2501-LLL-16-20-FG	1.625	1-5/16-12UN	1-1/4-11-1/2NPTF			2.01	2.38	0.844	1.25
35	2501-LLL-16-24-FG	1.875	1-5/16-12UN	1-1/2-11-12NPTF			2.16	2.64	0.844	1.5
36	2501-LLL-20-16-FG	1.625	1-5/8-12UN	1-11-1/2NPTF			2.06	2.35	1.078	0.938
37	2501-LLL-20-20-FG	1.625	1-5/8-12UN	1-1/4-11-1/2NPTF			2.06	2.38	1.078	1.250
38	2501-LLL-20-24-FG	1.875	1-5/8-12UN	1-1/2-11-12NPTF			2.2	2.64	1.078	1.5
39	2501-LLL-24-16-FG	1.875	1-7/8-12UN	1-11-1/2NPTF			2.33	2.58	1.312	0.938
40	2501-LLL-24-20-FG	1.875	1-7/8-12UN	1-1/4-11-1/2NPTF			2.33	2.61	1.312	1.25
41	2501-LLL-24-24-FG	1.875	1-7/8-12UN	1-1/2-11-1/2NPTF			2.33	2.64	1.312	1.5
42	2501-LLL-32-24-FG	2.5	2-1/2-12UN	1-1/2-11-1/2NPTF			3.06	2.97	1.781	1.5
43	2501-LLL-32-32-FG	2.5	2-1/2-12UN	2-11-1/2NPTF			3.06	3	1.781	1.938
