J系列-2701
發(fā)布日期：2024-01-12 瀏覽次數(shù)：1432

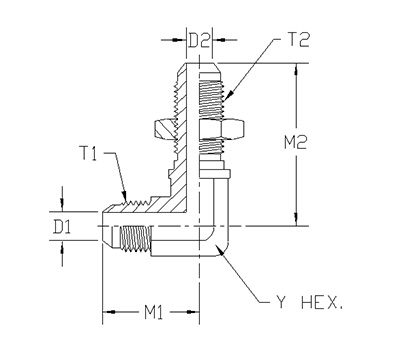

| ITEM | P/N | Y HEX | T1 | M1 | D1 | T2 | M2 | D2 |
| 1 | 2701-03-03-FG | 0.438 | 3/8-24UNF | 0.94 | 0.125 | 3/8-24UNF | 1.5 | 0.125 |
| 2 | 2701-04-04-FG | 0.438 | 7/16-20UNF | 0.97 | 0.172 | 7/16-20UNF | 1.59 | 0.172 |
| 3 | 2701-05-05-FG | 0.562 | 1/2-20UNF | 1.06 | 0.234 | 1/2-20UNF | 1.72 | 0.234 |
| 4 | 2701-06-06-FG | 0.562 | 9/16-18UNF | 1.09 | 0.297 | 9/16-18UNF | 1.81 | 0.297 |
| 5 | 2701-08-08-FG | 0.75 | 3/4-16UNF | 1.36 | 0.391 | 3/4-16UNF | 2.11 | 0.391 |
| 6 | 2701-10-10-FG | 0.875 | 7/8-14UN | 1.56 | 0.484 | 7/8-14UN | 2.39 | 0.484 |
| 7 | 2701-12-12-FG | 1.062 | 1-1/16-12UN | 1.78 | 0.609 | 1-1/16-12UN | 2.67 | 0.609 |
| 8 | 2701-16-16-FG | 1.312 | 1-5/16-12UN | 1.94 | 0.844 | 1-5/16-12UN | 2.8 | 0.844 |
| 9 | 2701-20-20-FG | 1.625 | 1-5/8-12UN | 2.17 | 1.078 | 1-5/8-12UN | 3.12 | 1.078 |
