P系列-1404
發(fā)布日期：2024-01-16 瀏覽次數(shù)：1370

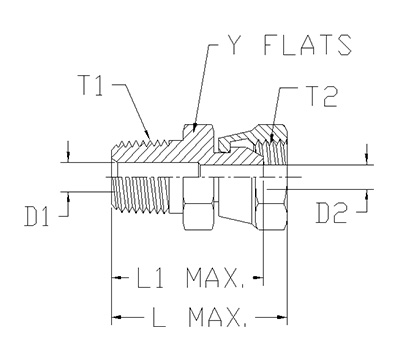

| ITEM | P/N | Y FLATS | T1 | T2 | L | L1 | D1 | D2 |
| 1 | 1404-02-02-FG | 0.563 | 1/8-27 NPTF | 1/8-27 NPSM | 1.19 | 1.00 | 0.188 | 0.156 |
| 3 | 1404-04-04-FG | 0.688 | 1/4-18 NPTF | 1/4-18 NPSM | 1.62 | 1.39 | 0.281 | 0.219 |
| 5 | 1404-06-06-FG | 0.875 | 3/8-18 NPTF | 3/8-18 NPSM | 1.74 | 1.47 | 0.406 | 0.344 |
| 6 | 1404-08-08-FG | 1.000 | 1/2-14 NPTF | 1/2-14 NPSM | 2.07 | 1.76 | 0.531 | 0.469 |
| 8 | 1404-12-12-FG | 1.250 | 3/4-14 NPTF | 3/4-14 NPSM | 2.25 | 1.84 | 0.719 | 0.641 |
| 10 | 1404-16-16-FG | 1.500 | 1-11 1/2 NPTF | 1-11 1/2 NPSM | 2.49 | 2.08 | 0.938 | 0.844 |
| 11 | 1404-20-20-FG | 1.875 | 1 1/4-11 1/2 NPTF | 1 1/4-11 1/2 NPSM | 2.64 | 2.18 | 1.250 | 1.141 |
| 12 | 1404-24-24-FG | 2.125 | 1 1/2-11 1/2 NPTF | 1 1/2-11 1/2 NPSM | 2.81 | 2.31 | 1.500 | 1.359 |
| 13 | 1404-32-32-FG | 2.625 | 2-11 1/2 NPTF | 2-11 1/2 NPSM | 2.96 | 2.46 | 1.938 | 1.813 |
