B系列-60-3005
發(fā)布日期：2024-01-09 瀏覽次數(shù)：1374

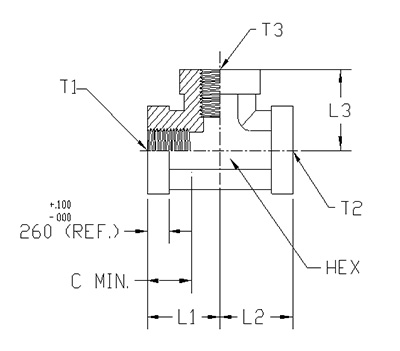

| ITEM | P/N | T1 | T2 | T3 | B | C MIN. | L1 | L2 | L3 | HEX |
| 1 | 3005-02-02-02 | G1/8-28 | G1/8-28 | G1/8-28 | 0.26 | 0.394 | 0.66 | 0.66 | 0.66 | 0.562 |
| 2 | 3005-04-04-04 | G1/4-19 | G1/4-19 | G1/4-19 | 0.26 | 0.538 | 0.88 | 0.88 | 0.88 | 0.750 |
| 3 | 3005-06-06-06 | G3/8-19 | G3/8-19 | G3/8-19 | 0.26 | 0.578 | 1.02 | 1.02 | 1.02 | 0.875 |
| 4 | 3005-08-08-08 | G1/2-14 | G1/2-14 | G1/2-14 | 0.26 | 0.623 | 1.23 | 1.23 | 1.23 | 1.062 |
| 5 | 3005-12-12-12 | G3/4-14 | G3/4-14 | G3/4-14 | 0.26 | 0.773 | 1.36 | 1.36 | 1.36 | 1.312 |
| 6 | 3005-20-20-20 | G1 1/4-11 | G1 1/4-11 | G1 1/4-11 | 0.26 | 0.900 | 1.70 | 1.70 | 1.70 | 1.875 |
| 7 | 3005-24-24-24 | G1 1/2-11 | G1 1/2-11 | G1 1/2-11 | 0.26 | 0.980 | 2.08 | 2.08 | 2.08 | 2.562 |
